Description

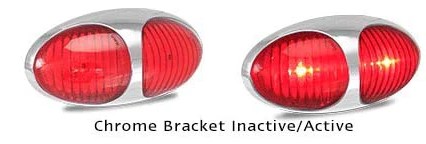

LED Autolamps 24 Volt Rear End Outline Chrome Bracket Marker Lamp
Features
- Easy to fit – no tools required
- Serrated plug and 3M tape
- Harness system compatible
- Available in Black, Chrome and Clear Chrome types
- ADR approved
- IP67 100% Water proof
Fitting Instructions
Drill two 6mm holes for serrated plugs and one 8mm hole or larger for the cable. Remove the 3M protective film from the back of the lamp and simply push into place. Please refer to ADR 13/00 for mounting instructions.
Specifications
Function: Rear end outline marker
Size: 70mm x 35mm x 20mm
Voltage: Multivolt 12-24V
LED Qty: 2
Cable: 10cm with specially designed
plugs or 3 meter cable
Draw
@13.8V: 0.04A
@28V: 0.04A
