Description

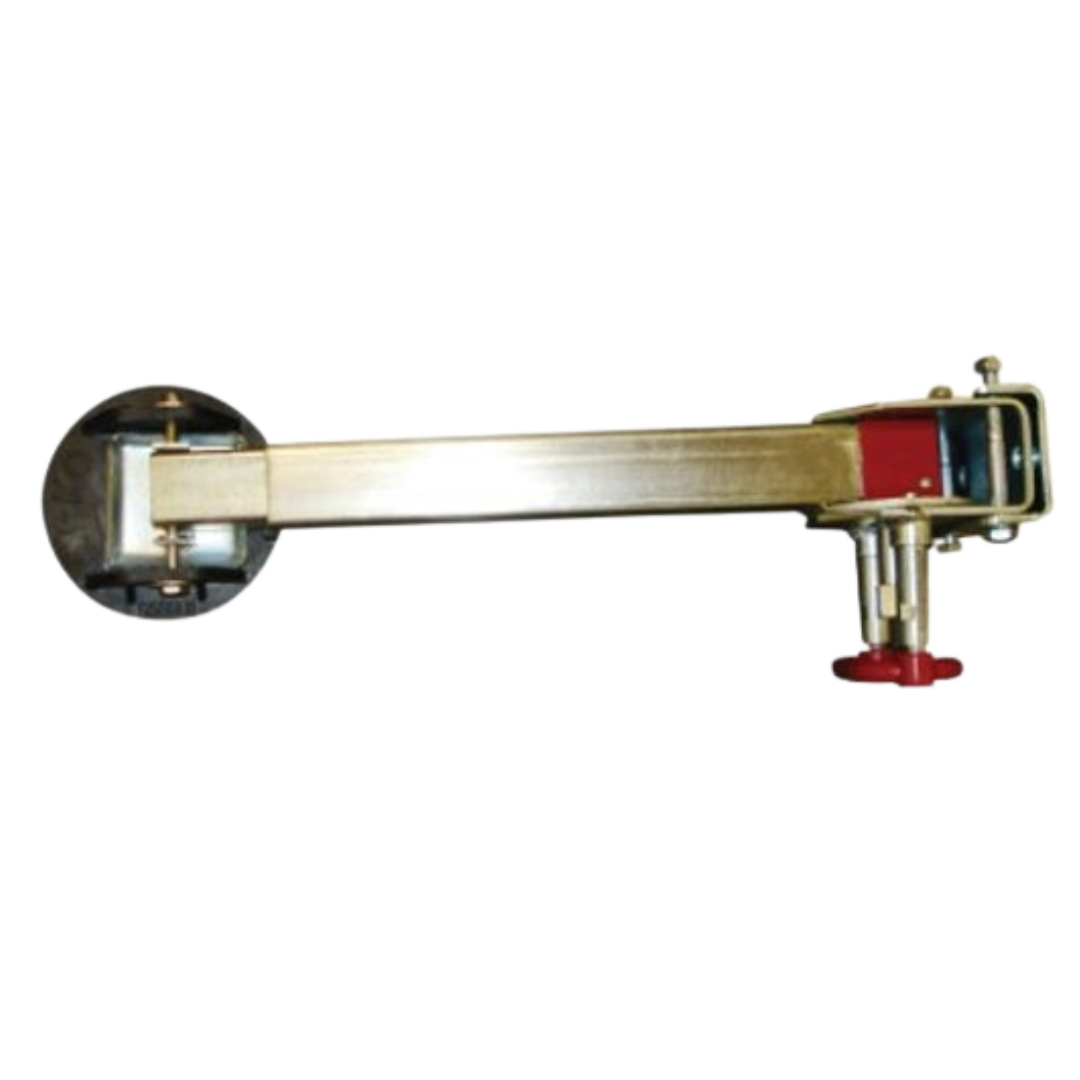

Alko 740mm Drop Down Corner Steady with Bigfoot
Hex Drive Drop Down Style Steady Zinc Plated. Max length 740mm. These corner stabiliser drop down to any angle and are then locked in place with the quick release red handle.
Price is for one, corner stabiliser, the HEX winder handle is a separate item.
Features:
These stabilisers can also provide vertical support, and are therefore more rigid than the traditional angled legs.
Each stabiliser comes with a mounting bracket that is usually welded to the chassis and the stabilisers are then bolted to this with the included bolts. The minimum height when set vertical is 500mm, but it can still operate on the angle at any height, just like the traditional wind down legs. When fully extended vertically it will reach to 740mm. This could be further extended with removable blocks.
Specifications
- Height Fully Extended: 740mm (Bigfoot Included)
- Minimum Vertical Height: 500mm (Bigfoot Included)
- Stowed Height: 125mm
- The mounting bracket for welding is 110mm x 75mm. If bolting to the frame the bracket is 100 x 65mm with 80mm hole centres.
- The internal dimensions of the bracket are L 110mm x W 65mm
- Shipping Weight: 5.40 Kgs.
- Shipping Dimensions: 56 cm x 19 cm x 11 cm.
