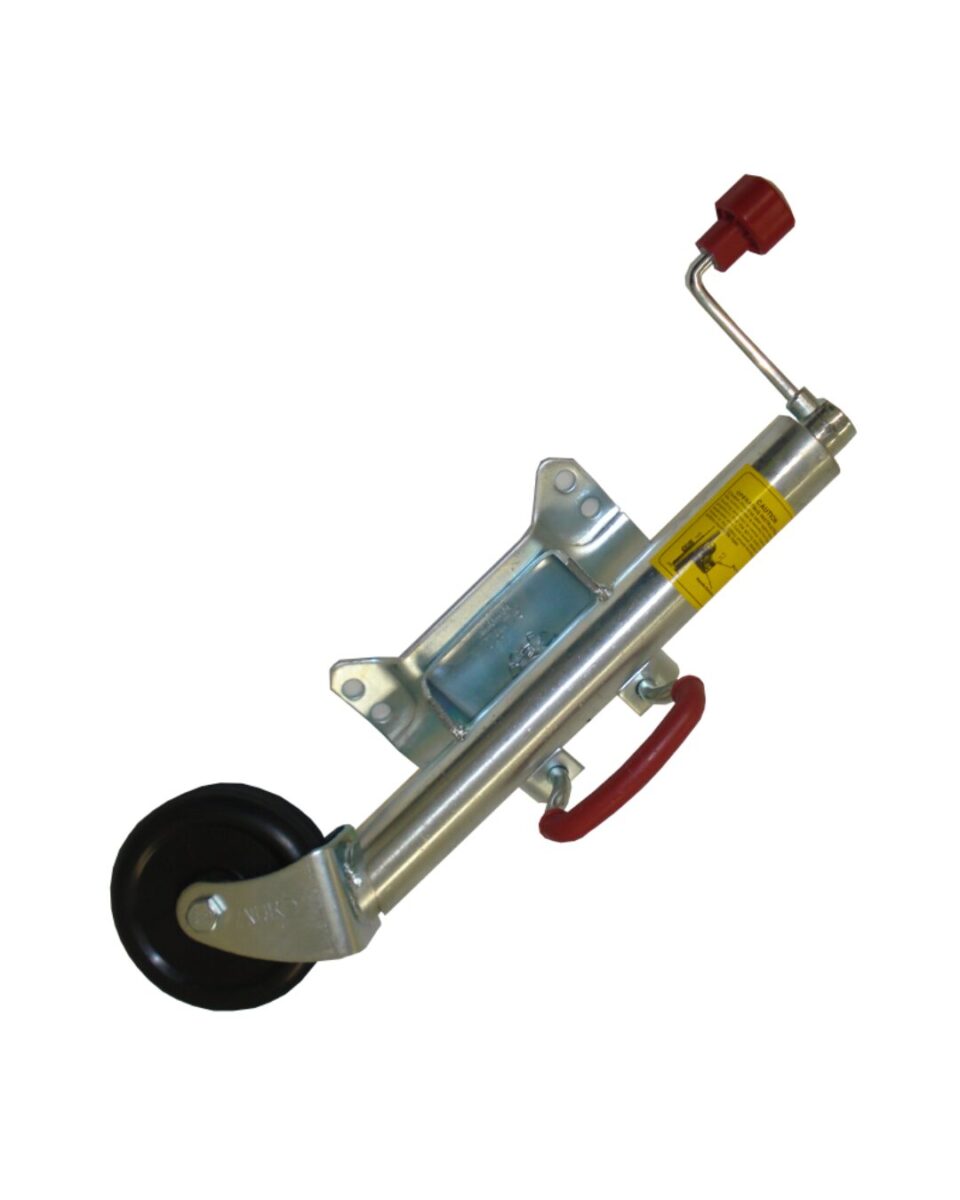

Al-ko Premium 6 Inch 150mm Jockey Wheel – Large Swivel Bracket
AL-KO's Premium range of jockey wheels with swivel brackets enables quick and easy uncoupling of your caravan or trailer. Simply pull the release handle and the jockey wheel rotates between upright and travelling positions. This time-saving feature means you will never need to remove and store your jockey wheel.
Made from high-quality materials rated with a static capacity of 400 kg, the range includes multiple bracket options and a choice of wheel sizes from 150mm to 250mm. The swivel bracket can be welded or bolted on using the range of specialty U-bolt kits available to suit your A-frame needs.
The AL-KO 626200 is a standard-height jockey wheel with a large swivel bracket and a 150mm (6 inch) solid tyre. The zinc-coated 48 mm diameter shaft has a maximum extension of 250 mm with a lift range of 300 mm to 550 mm between the ground and the centre of the drawbar.
This unit is ideal for caravans or trailers that do not require much movement once detached from the tow vehicle. If movement is required or if using on soft or uneven ground, larger diameter jockey wheels are recommended.
- Swivel bracket allows the jockey wheel to stay permanently attached.
- No need to remove for storage
- Simple swing away action for travelling position
- Angle tube prevents rotation when stowed
- Zinc-coated for lasting protection
- Static Capacity: 400 kg
- Wheel Size: 150 mm (6 inch) solid tyre
- Weight: 7 kg
- Max lift/extension: 250 mm
- Minimum Ground Clearance (G1): 300 mm (from centre of drawbar)
- Maximum Ground Clearance (G2): 550 mm (from centre of drawbar)
- Overall Shaft Height Open: 760 mm
- Overall Shaft Height Closed: 510 mm
- Finish: Zinc plated
- Clamp: Swivel bracket – bolt on, suits 75 mm and 100 mm U-bolts (not included)
