Description
AU Focus 2KW Diesel Heater MZ Gen4 Full Kits (5L Fuel Tank with gauge S/Steel)
2kW MZ Bluetooth – Gen 4 Kit
This Premium Quality AU Focus Diesel heater is backed by a 24 month warranty.
This is the most popular AU Focus diesel heater and used by over 90 caravan manufacturers, hundreds of caravan dealers and service centres across the country.
Features:
- RCM and EMC Certification.
- Three modes: 1. Fan only, 2. Manual Heat Mode 1 – 10, 3. Smart mode – The heater stops heating and burning fuel once it arrives at a set temperature. If the temperature then drops 2 degrees celsius the heater resumes.
- Small and compact design allowing for a space-saving installation.
- Easy to use LCD panel with remote control also features, Bluetooth connectivity and app to control from your phone.
- Sensors on both the control board and fan for additional safety protection.
- High and Low Voltage & current protection.
- Fast heat up time and maintains a consistent temperature.
- Auto cool down process when powered off.
- Low fuel consumption.
Specifications:
- Power: 1kW – 2kW adjustable.
- Fuel: Diesel only.
- Rated Voltage: DC 12V
- Fuel Consumption (L/h): 0.1-0.3
- Working Temperature: -400~+500
- Main Unit Size: Length 340mm x Width 115mm x Height 115mm.
- Fuel Tank Size: Length 265mm x Height 325mm x Depth 110mm.
- Fuel Neck & Cap Height 70mm.
- Black flame retardant plastic casing.
- LCD Control Panel – Also displays error codes for easy troubleshooting if required.

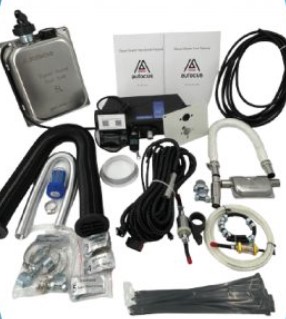

What’s Included:
- Easy to follow Installation manual.
- Easy to read User Manual.
- 5L Stainless Steel (304 grade) Fuel Tank with top mounted dial fuel level gauge, fuel pickup and lockable fuel cap.
- LCD panel with remote control plus easy to download app to control the heater from your mobile phone.
- Solidly constructed with high grade heat resistant hard casing.
- 2 x Directional Flat vents.
- Super quiet heavy duty fuel pump.
- PA66 hard nylon fuel line 6m (4mm diameter, 1mm wall thickness), with black rubber connectors and heavy duty conduit.
- Unique design wiring harness. The wiring harness includes a 5m power cable (2.5mm core wiring), a 2.5m LCD controller cable and a 2.5m pump power cable. All cables are in flame retardant conduit and Anderson Plugs for easy installation (plug and play).
Quality Air Filter
- Premium reusable fuel filter made with alloy top and base.
- High grade exhaust with flame retardant sleeve, a heavy duty baffled muffler and exhaust tip.
- Powder coated mounting plate with protective flange ring to protect the floor and provides the best possible seal between the caravan floor and the undercarriage.
- Thicker durable plastic cable ties.
- High quality clamps and other accessories required to complete the installation.
- Power (5~35w/h), peak consumption up to 90~150w for the first few minutes whilst the glow plug heats up.
